3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell

  • 3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell
  • 3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell
  • 3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell
  • 3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell
Place of Origin CHINA
Brand Name EA ENERGY
Certification CE MSDS UN38.3
Model Number 32135 15Ah
Minimum Order Quantity 1PCS
Price Negotiable
Packaging Details 32*15*7cm 200pcs / carton GW: 6kg
Delivery Time 1-5 Work days
Payment Terms T/T, Western Union, MoneyGram, T/T, D/P
Supply Ability 100000pcs Per Day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model 32135 Voltage 3.2V
Capacity 15Ah Diameter 32±0.2mm*135±0.2mm
Standard Charge Current Constant Current 0.5C Standard Discharge Current Constant Current 0.5C~1C
Cell Type LiFePO4 Battery Cells Cycle Life >3000 Cycles
Impedance ＜5mΩ Certifications CE/IEC62133/MSDS/UN38.3
Highlight

UN38.3 15Ah LiFePO4 Ebike Battery

,

IFR32135 LiFePO4 Ebike Battery

,

IFR32135 Cylindrical Lithium Ion Cell
Leave a Message
Product Description

3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell



3.2v 15Ah LiFePO4 Ebike Battery Rechargeable LFP Battery Cells IFR32135 For EV , Scooter



Cylindrical Lithium Ion Cell details:

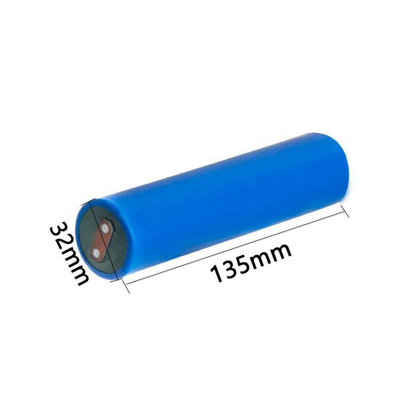

1. Diameter*Height : 32*135mm ( LiFePO4 32135 size )

2. Nominal Voltage : 3.2V

3. Nominal Capacity : 15Ah 48Wh

4. Cycle life : 3000 cycles

5. Standard charging ways : CC / CV

6. Li-ion / Lithium Ion LiFePO4 battery cell

7. CE , UL , UN38.3 , MSDS compliant



LiFePO4 Ebike Battery Description:



EA Energy has 14 years of experience in lithium battery production!



90% of the energy of the iron phosphate battery is concentrated in a small area of 3-3.2v, and the discharge characteristics are very stable.
lithium iron phosphate is strictly Safety tests do



It is suitable for all kinds of small electric tricycle battery packs, sprayer batteries, solar street lights, strong light flashlights etc.

higher energy density and lighter weight. Excellent life cycle, low internal resistance, Universal multi-use model, energy saving and Environmental friendly.


Widely Applications: Power tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, Sub Marine, Electric Bicycles/Scooters,
Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems,
Uninterruptible Power Supplies, Solar System/Power sprayer/electric car/Road cleaning car/Golf car/EV/RV/Caravan
Off-Grid Solar Storage System



Nominal voltage: 3.2v



Battery resistance: ≤2.5mΩ



The maximum charging current:5C



Maximum charging voltage: 3.65±0.05V



The maximum discharge current (continuous): 0.5C



The maximum discharge current (instantaneous pulse): 5C



Discharge voltage: 2.0V



Size Φ33±1mm*H140±1mm



Weight: 300g



Cycle life: >3000 Operating



temperature: -10~45℃



Storage temperature Within a month: -20~40℃



Within 6 months -20~35℃



Battery Safety Warnings: Mishandling of the battery may cause heat, fire, damages, and deterioration in performance.



Easy to install,High capacity, long life and lasting performance.



We can also customize any size and function you need.Such as 12V/24V/36v/48v/60V/72v 20AH, 50AH,100h, 120ah, 150ah,200ah, 300ah, 400ah, 800ah etc..







Lifepo4 Ebike Battery Cells Specifications :



Item 32135 LiFePO4 battery cell
Model 32135
Dimension 32*135mm
Continuous discharging current 1C~5C
Peak discharging current 3C
Max charge current 3C
Certificate CE/IEC62133/MSDS/UN38.3
Cycle life 2000~3000 times
Lead time 3-5 days for samples
12-15 days for production




Lifepo4 Ebike Battery Cells Details:

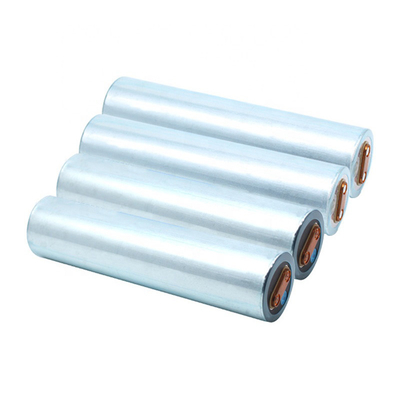

3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell 0



Lifepo4 Ebike Battery Cells Applications:



Widely Applications: Power tools, Home Appliances, Consumer Electronics, Boats, Golf Carts, Sub Marine, Electric Bicycles/Scooters,
Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems,
Uninterruptible Power Supplies, Solar System/Power sprayer/electric car/Road cleaning car/Golf car/EV/RV/Caravan
Off-Grid Solar Storage System

3.2v 15Ah LiFePO4 Ebike Battery IFR32135 Cylindrical Lithium Ion Cell 1
